Nguồn gốc:
Trung Quốc
Hàng hiệu:
WENYOU
Chứng nhận:
ISO/REACH/RoHS/SGS/UL
Số mô hình:
LW-8229A/LW-8229b
Băng hình
Băng hình
Băng hình
| Attribute | Value |
|---|---|
| Breakdown Strength | ≥25 kV/mm |
| Tracking Resistance | ≥600 V |
| Dielectric Constant | 3.0-4.0 (50Hz) |
| Flammability | V1 (UL94) |

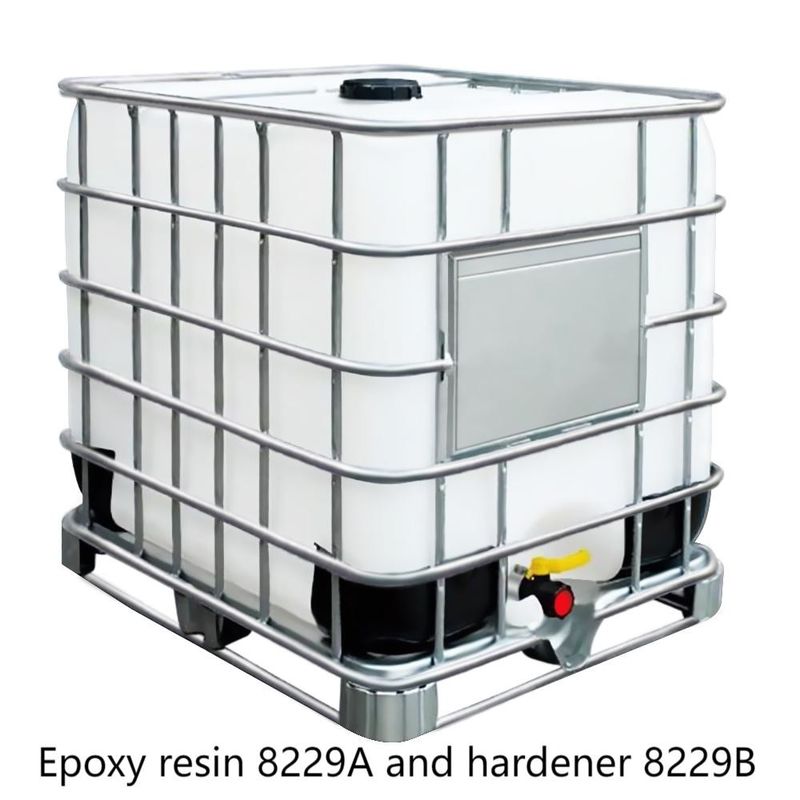

The LW-8229A/LW-8229B is a pre-mixed, filler-loaded epoxy system designed for medium/high-voltage insulation (10-35kV). Combining modified BPA epoxy (LW-8229A) and anhydride hardener (LW-8229B) with integrated fillers, it delivers superior crack resistance, V1 flammability rating (UL94), and H-class thermal endurance (180°C). Optimized for vacuum casting and APG processes in transformers, CTs, and terminal posts.
| Feature | Advantage |
|---|---|
| Pre-Mixed Fillers | Simplified processing, consistent dispersion |
| V1 Flammability Rating | Enhanced fire safety for critical electrical components |
| Thermal Class H (IEC 60085) | Stable performance up to 180°C |
| APG & Vacuum Casting Ready | Flexible production integration |
| High Arc Resistance | 181-198 sec (IEC 61621) |
| Low Water Absorption | 0.10-0.20% (23°C/10d) |
| Dual-Process Compatibility | Adapts to APG or vacuum workflows |
Ideal for sealed electrical insulation:
Cured system: LW-8229A/LW-8229B = 100:100 | Cure: 140°C×4h + 150°C×12h
| Property | Value | Standard |
|---|---|---|
| Flexural Strength | 90-130 MPa | ISO 178 |
| Tensile Strength | 55-85 MPa | ISO 527 |
| Impact Strength | 8-15 kJ/m² | ISO 179 |
| Glass Transition (Tg) | 105-120°C | ISO 11357-2 |
| Thermal Conductivity | 0.8-0.9 W/m*K | ISO 8894-1 |
| Decomposition Temp | >320°C | ASTM E2402 |
| Property | Value | Standard |
|---|---|---|
| Breakdown Strength | ≥25 kV/mm | IEC 60243-1 |
| Volume Resistivity | 10¹⁵ Ω*cm | IEC 62631-3-1 |
| Tracking Resistance | ≥600 V | IEC 60112 |
| Dielectric Constant | 3.0-4.0 (50Hz) | IEC 60250 |
| Flammability | V1 (UL94) | UL94/GB/T2408 |
| Hydrophobicity | HC1 Class | IEC 62073 |
