Name: Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9287F
Price: 2.50 USD
Availability: InStock

Trang chủ > các sản phẩm > Nhựa Epoxy điện >

Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators

high-temperature epoxy resin

thermally stable electrical epoxy

epoxy resin for insulators

Place of Origin:

Shanxi, China

Hàng hiệu:

WENYOU

Model Number:

9287F

Liên hệ chúng tôi

Yêu cầu báo giá

Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators

Thông tin chi tiết sản phẩm

CAS No.:

1675-54-3

Molecular Formula:

C21H24O4

EINECS No.:

26-823-5

Classification:

Double Components Adhesives

Main Raw Material:

EPOXY

Type:

Epoxy resin for Electrical Insulation

Resin System:

PAG resin system

Formulation Resin:

LE-9287F

Formulation Hardener:

LH-9287F

Formulation Filling:

Silica flour(*10)

Filling Quantity:

350-450pbw

Color Paste:

LC-serious

Color Paste Quantity:

3pbw

Processing Method:

Conventional casting process under vacuum

Heat Shock Resistance:

Excellent

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity

Sản phẩm liên quan

Fast-Cure Flame Retardant Epoxy Resin for Transformers

Nhận giá tốt nhất

Chemical Resistant Epoxy Hardener for MV Switchgear Encapsulation

Nhận giá tốt nhất

High Dielectric Strength Epoxy Resin for MV Circuit Breakers

Nhận giá tốt nhất

Fast-Cure Epoxy Curing Agent for MV Switchgear Manufacturing

Nhận giá tốt nhất

Liên hệ chúng tôi

0086 18916511816

hope.lu@sh-wysy.com

86-21-64308192

Liên hệ ngay

Mô tả Sản phẩm

Thermally Stable Epoxy Resin for Insulators in High-Temperature Environments

Product Attributes

Attribute	Value
CAS No.	1675-54-3
Other Names	Epoxy Resin Compound
MF	C21H24O4
EINECS No.	26-823-5
Classification	Double Components Adhesives
Main Raw Material	EPOXY
Usage	Other
Type	Epoxy resin for Electrical Insulation

Product Description

Our thermally stable epoxy resin is specially engineered for high-temperature applications such as industrial furnaces and high-power electrical equipment. It maintains excellent insulating properties even at elevated temperatures due to its high glass transition temperature, preventing softening or loss of structural integrity.

Key benefits include:

Maintains insulation performance in high-temperature environments
Prevents overheating and damage to motor windings
Reduces need for additional cooling mechanisms
Enhances overall electrical system efficiency

Properties

Bi-component Epoxy resin system
Liquid formulation suitable for conventional vacuum casting processes
Excellent splitting resistance & heat shock resistance
Superior technical & mechanical properties

Applications

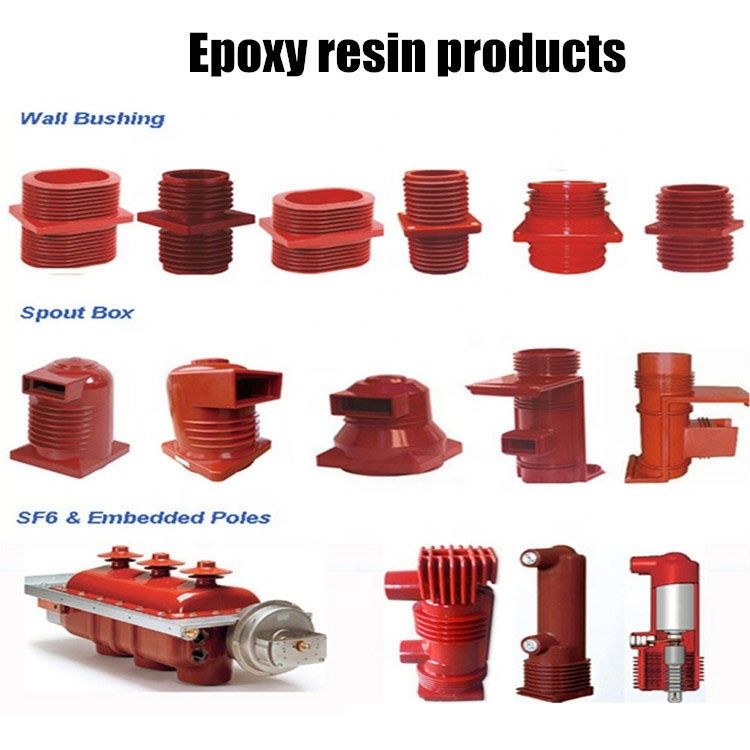

Ideal for medium & high voltage insulation switch parts including:

Insulators
10kV/35kV current & voltage transformers
Dry-type transformers

Formulation

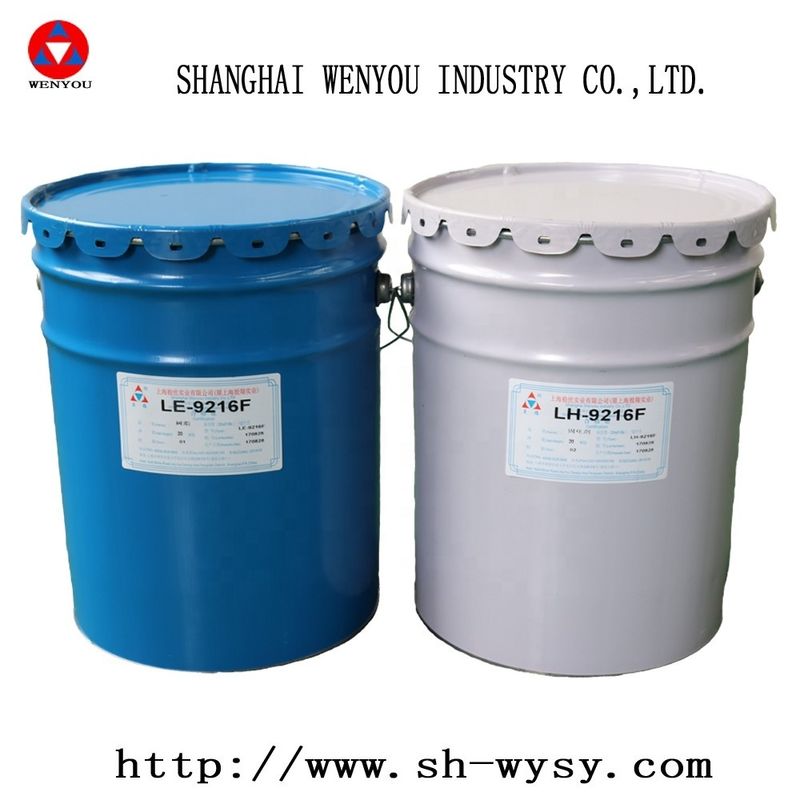

Component	Type	Quantity
Epoxy resin	LE-9287F	100pbw
Hardener	LH-9287F	100pbw
Filling	Silica flour(*10)	350-450pbw
Color paste	LC-serious	3pbw

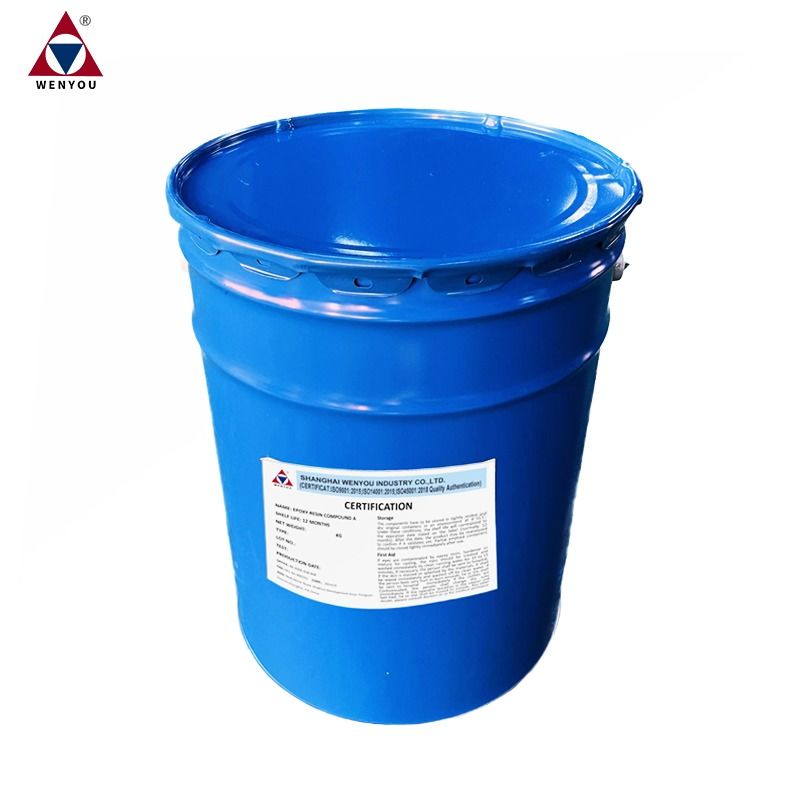

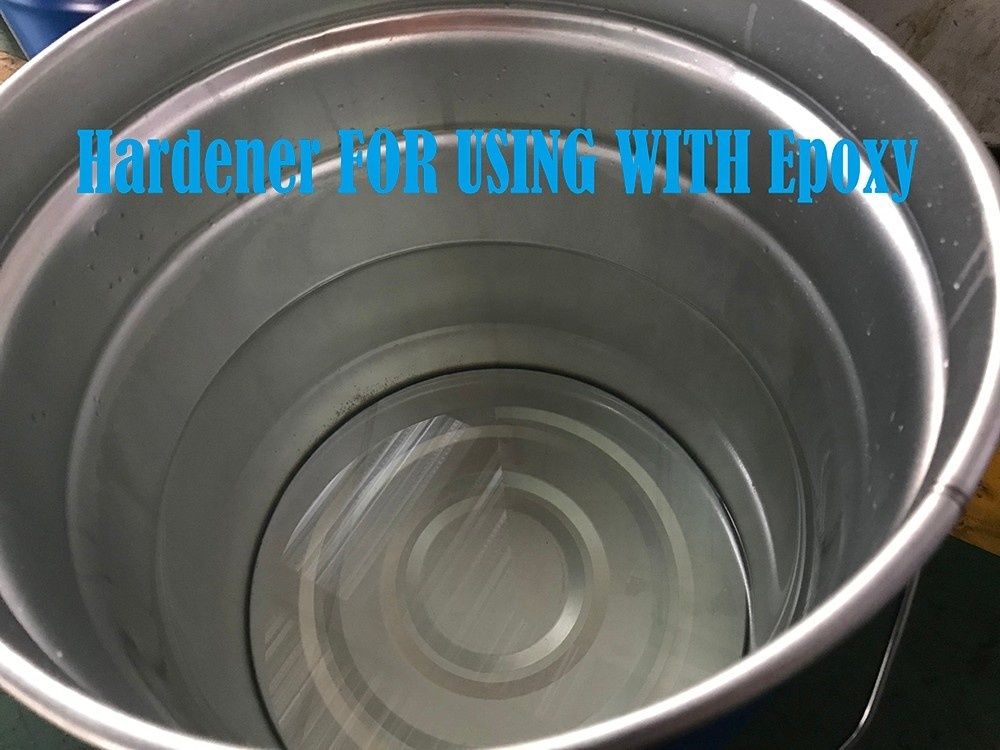

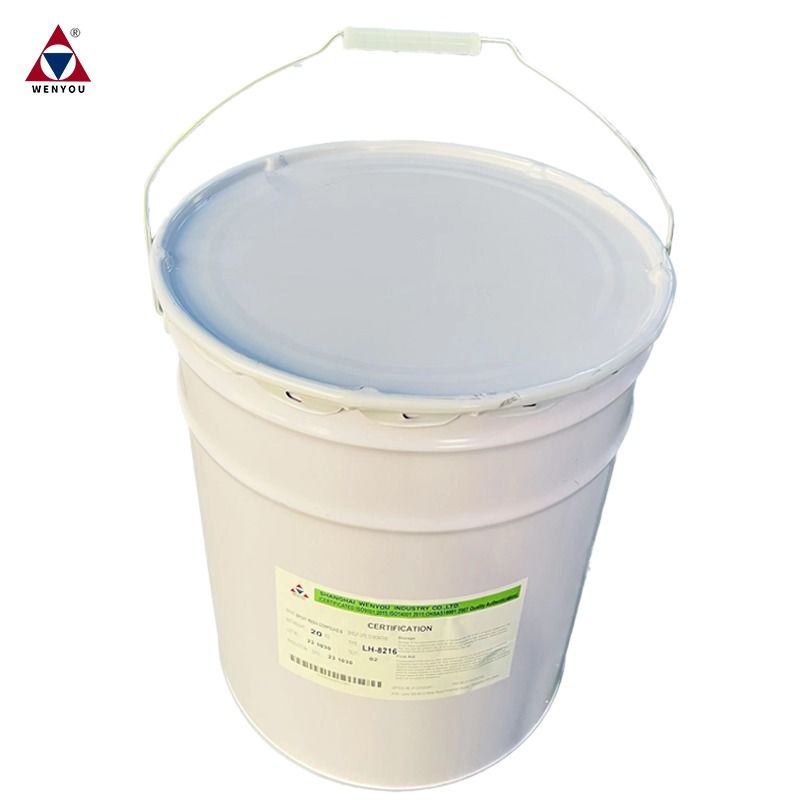

Product Images

Packing and Delivery

Certifications

About Our Company

Shanghai Wenyou Industry Co., Ltd. is a professional manufacturer and supplier of epoxy resin products located in Fengxian District, Shanghai, China. Our product range includes epoxy resin, flame retardant resin, curing agents, and various additives, serving both domestic and international markets including Europe, Southeast Asia, and the Middle East.

We hold ISO9001 and ISO14001 certifications, along with EU SGS and US UL certifications. Our products comply with ROHS and REACH safety regulations and are widely used in high voltage electrical insulation applications from 10-1100KV.
